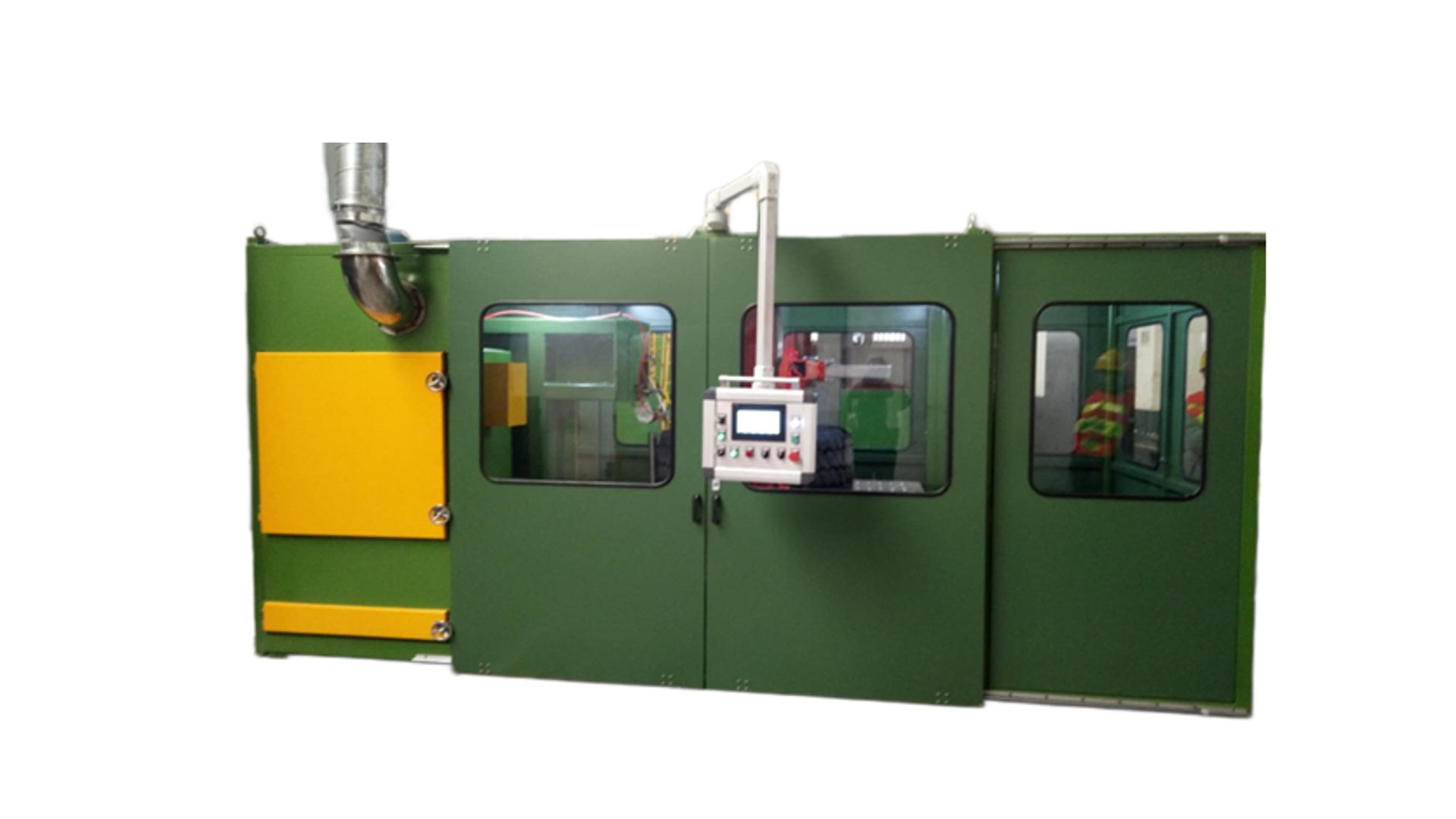

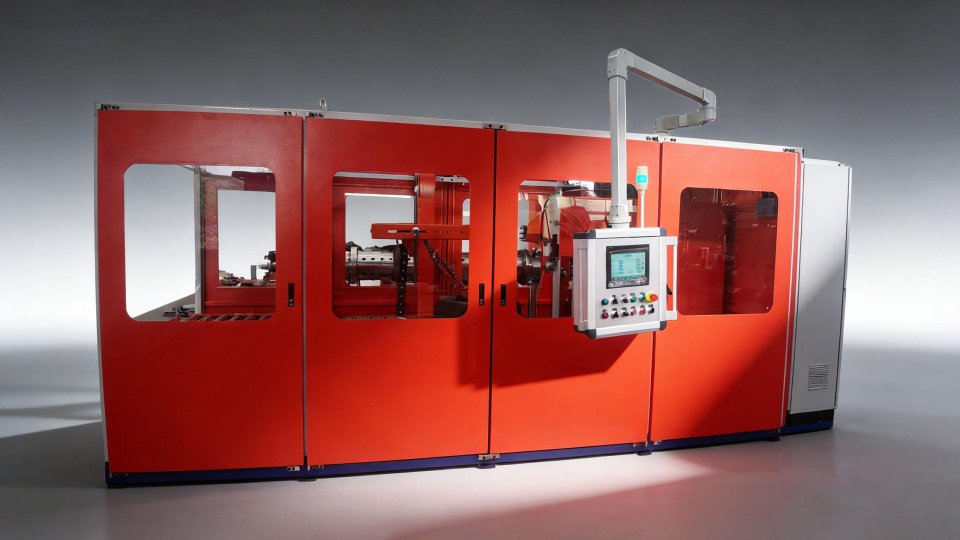

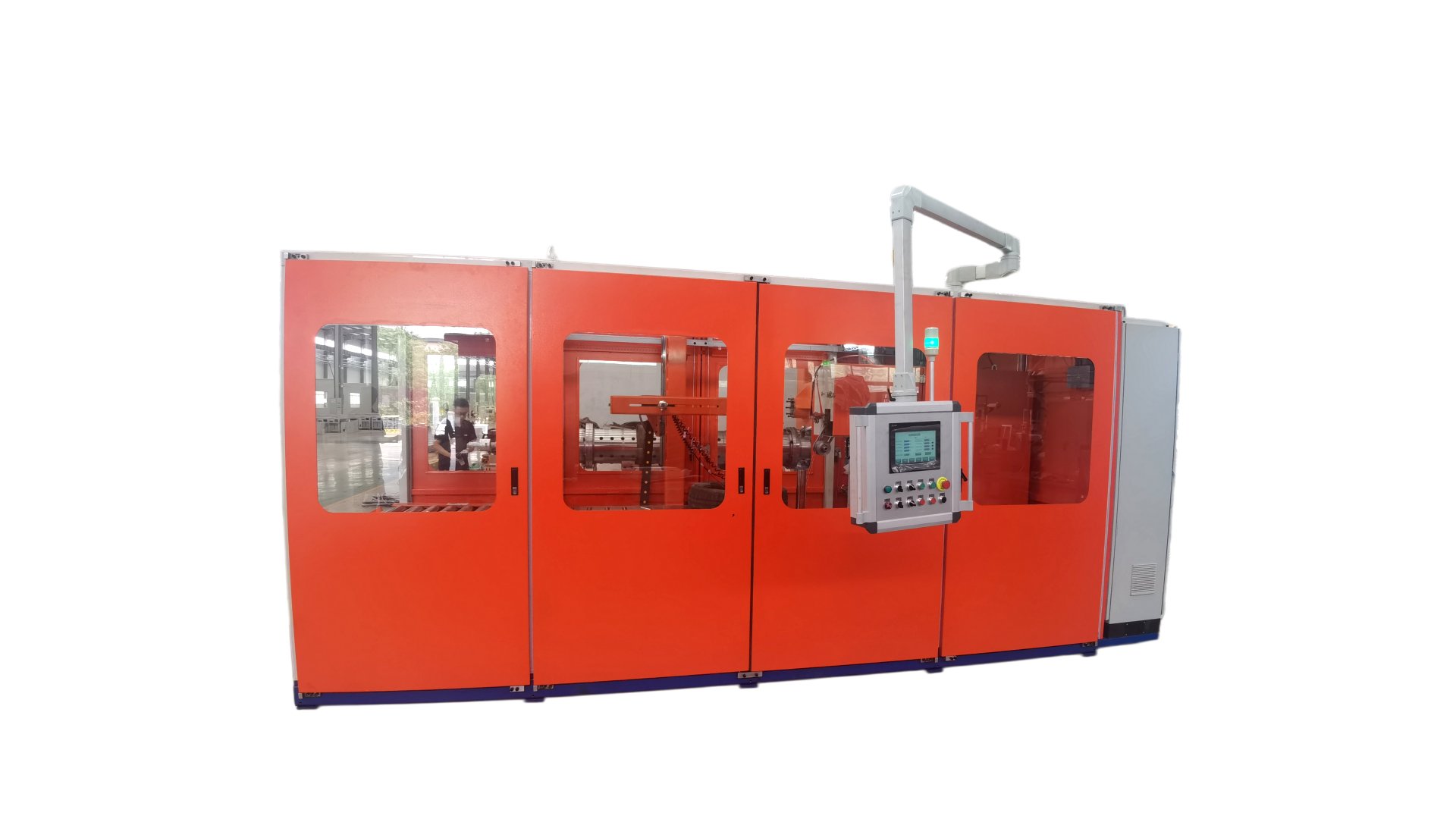

Tire Section Cutting Machine for PCR/LTR/TBR

The Tire Section Cutting Machine is designed for precise preparation of tire cross-sectional samples. Equipped with TMSI’s proprietary cutting wires, the machine supports single-pass dual-wire cutting, with the inner wire passing through the tire centerline.

Suitable for PCR, LTR, and TBR tires, the machine delivers high-quality cut surfaces and reliable cutting performance. It features safe operation, high efficiency, easy handling, low energy consumption, and low noise, making it an ideal solution for tire sectioning in inspection, analysis, and R&D applications.

The Main Specification

Cutting Object and Range

Type of Cutting Tire	Passenger car tires (PCR), Light truck tires (LTR), Truck and bus tires (TBR).
Outer Diameter of Tire	400mm~1500mm
Section Width of Tire	135mm～500mm
Tire Nominal Bead Diameter	12"～24.5"
Bead Area Thickness	Max.40mm
Section Height of Tire	Max.440mm
Tire Weight	Less than 200kg

Machine Parameters

Overall Dimensions of Machine	Approximately 4800mm(L)×2200mm(W)×2600mm(H)
Total Weight of Machine	Approximately 6000kg
Diameter of Cutting Wire	2mm
Cutting Linear Velocity	Max.30m/s
Working Air Pressure	0.6MPa

Cutting Data

Feeding Speed in Cutting	3mm/min～60mm/min (To be determined in accordance with the size of cut section and steel cord layout in the tire).
Fast Forward and Backward Speed	Max. 300mm/min.
Thickness of Cutting Sample	Double wires cutting: 38mm±2mm.
Cutting Wire Life	1 set (2 pieces) wires are needed on average to cut 60 samples of 11.00R20 TBR tires. 1 set (2 pieces) wires are needed on average to cut 180 samples of 195/65R15 PCR tires.
Cutting Efficiency	< 25 minutes (cut one section of 11.00R20 TBR tires). < 12 minutes (cut one section of 195/65R15 PCR tires).
Cutting Section Quality	To confirm the cutting section sample and seal them with the user when signing the technical agreement, then save the samples by two sides.
